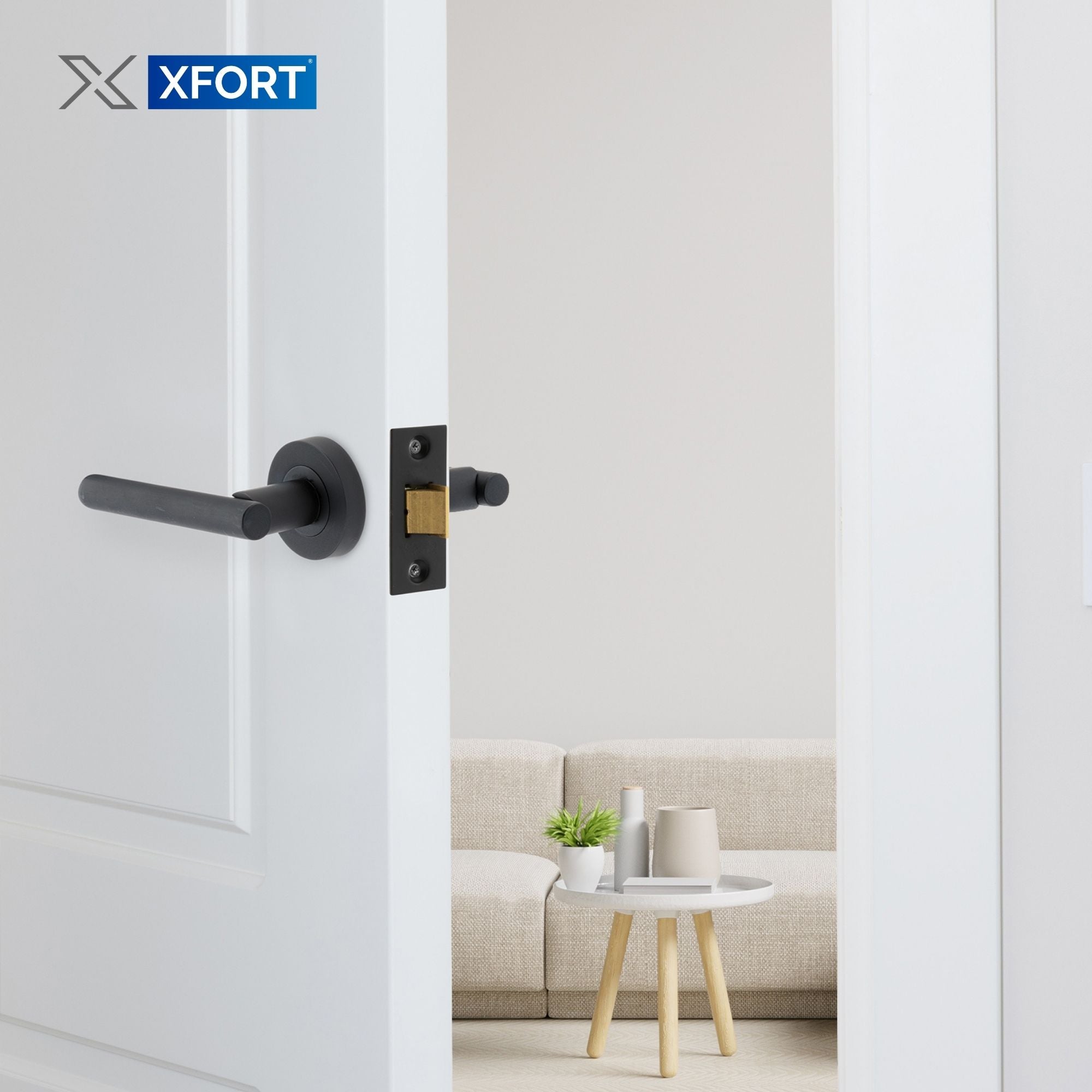

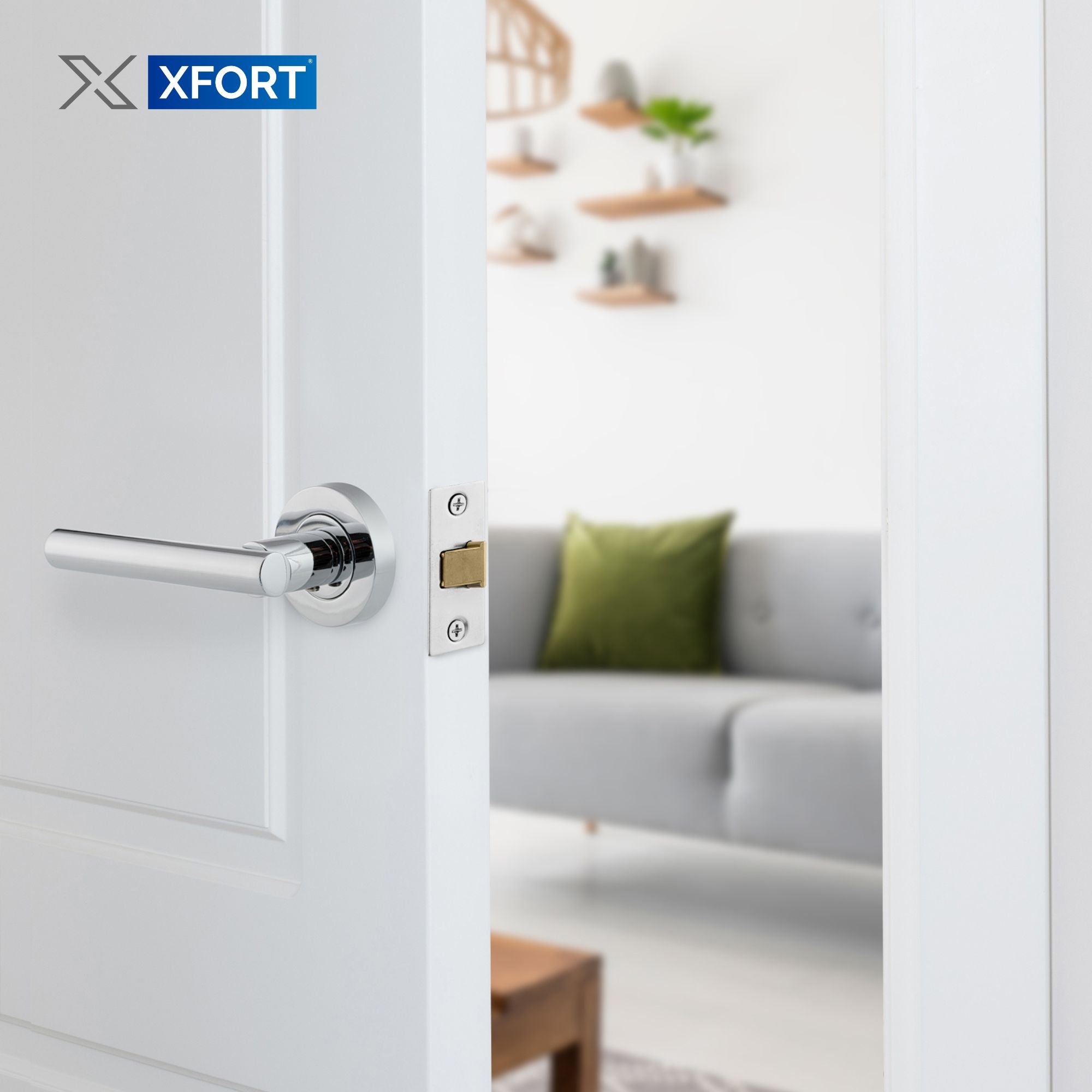

XFORT Liberty Lever on Rose Latch Pack

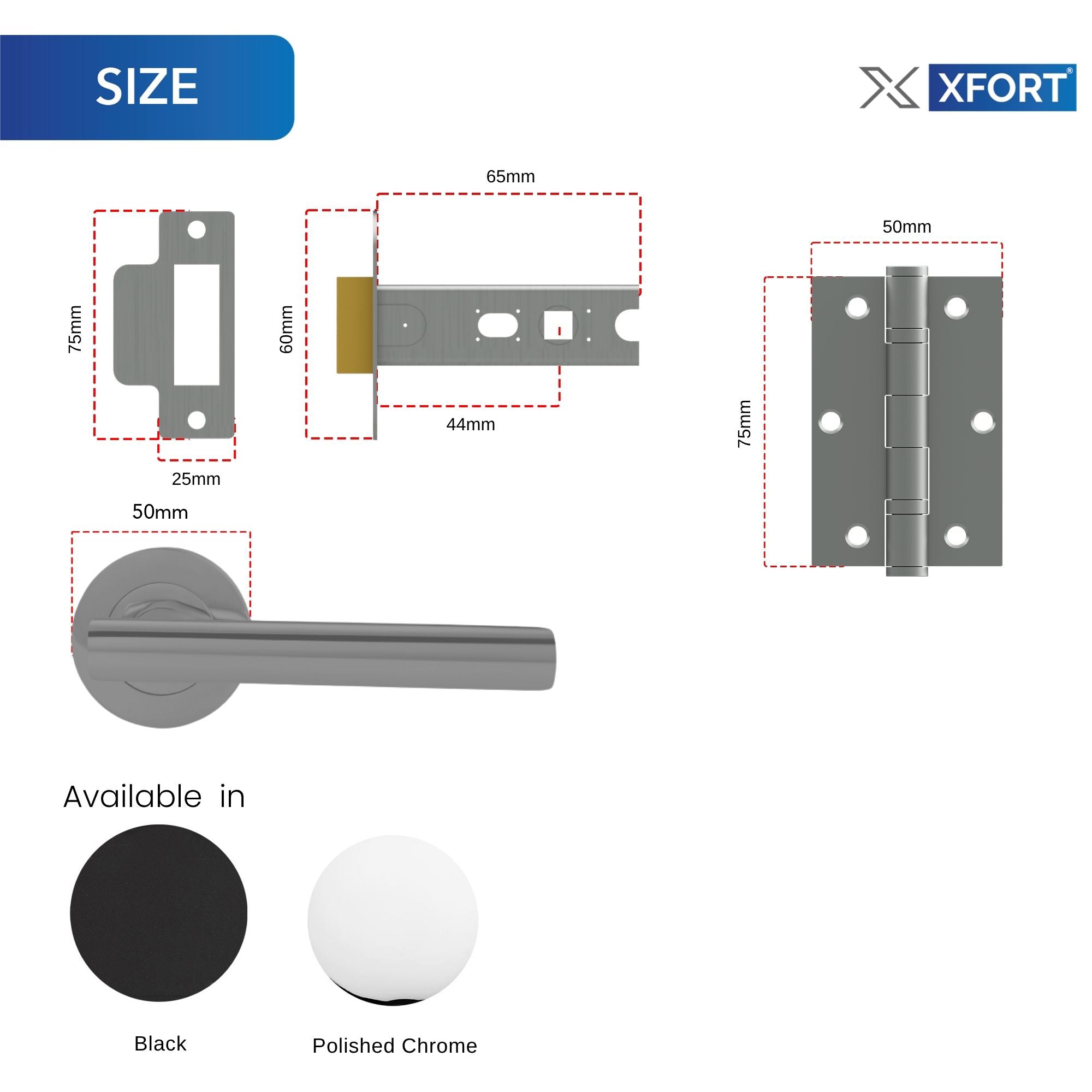

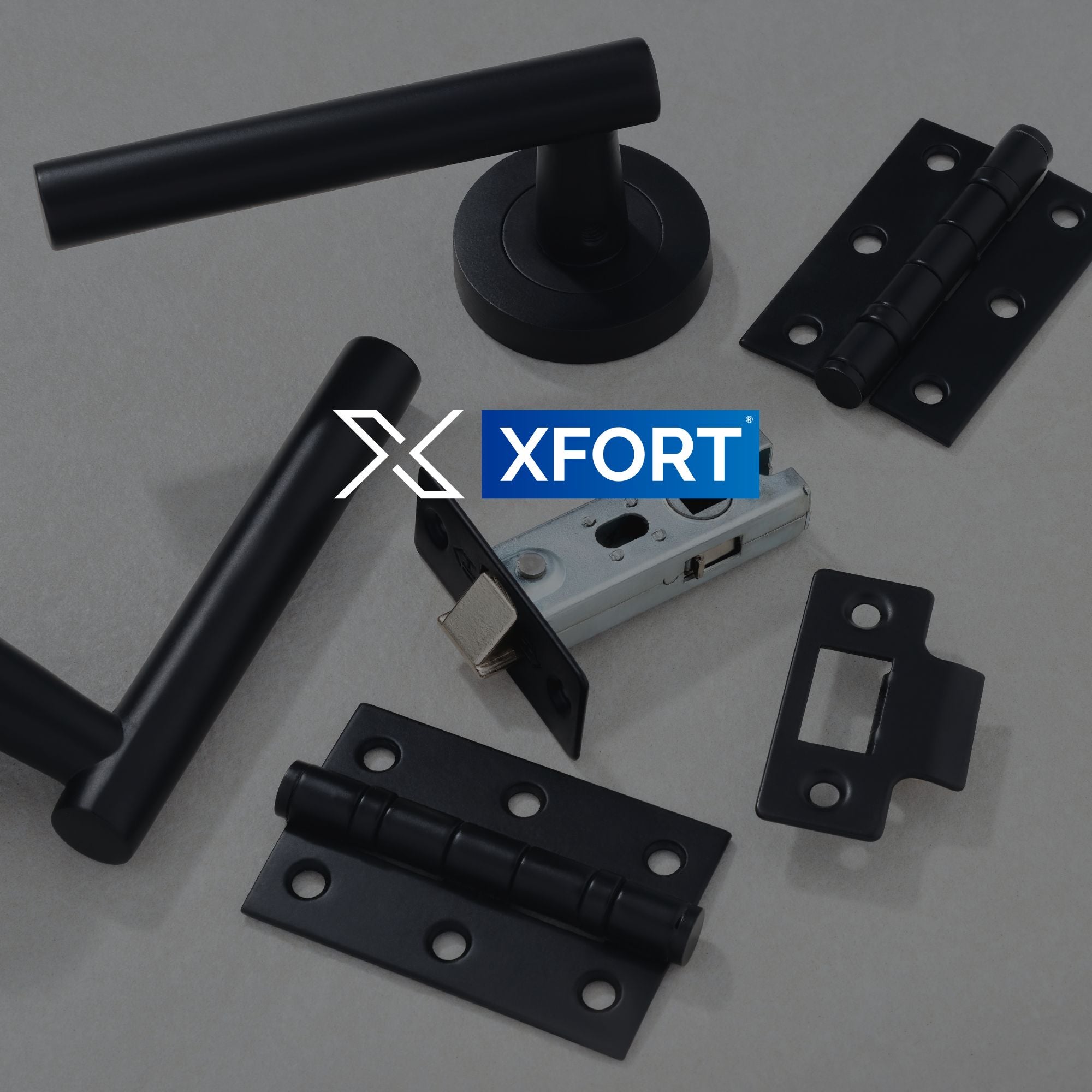

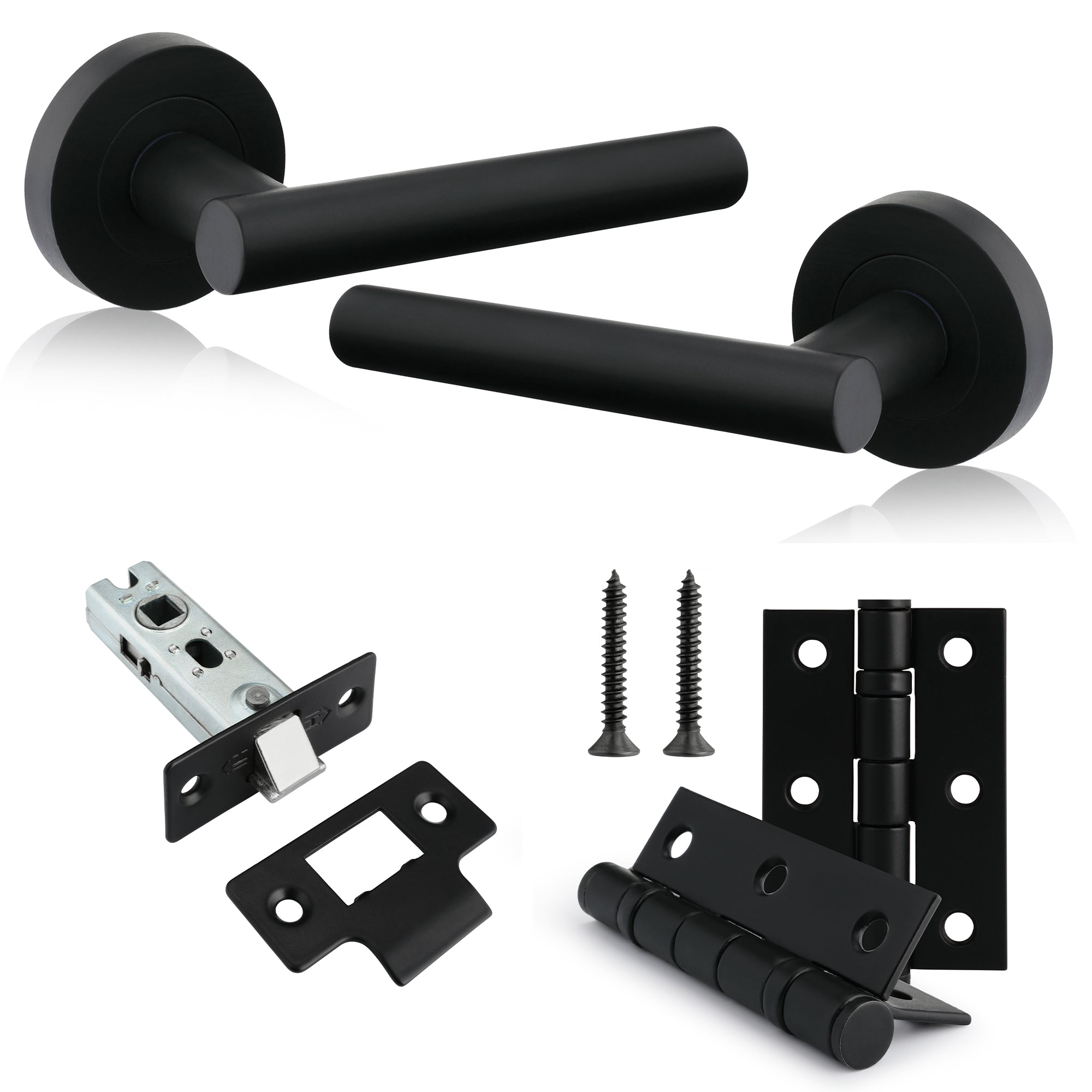

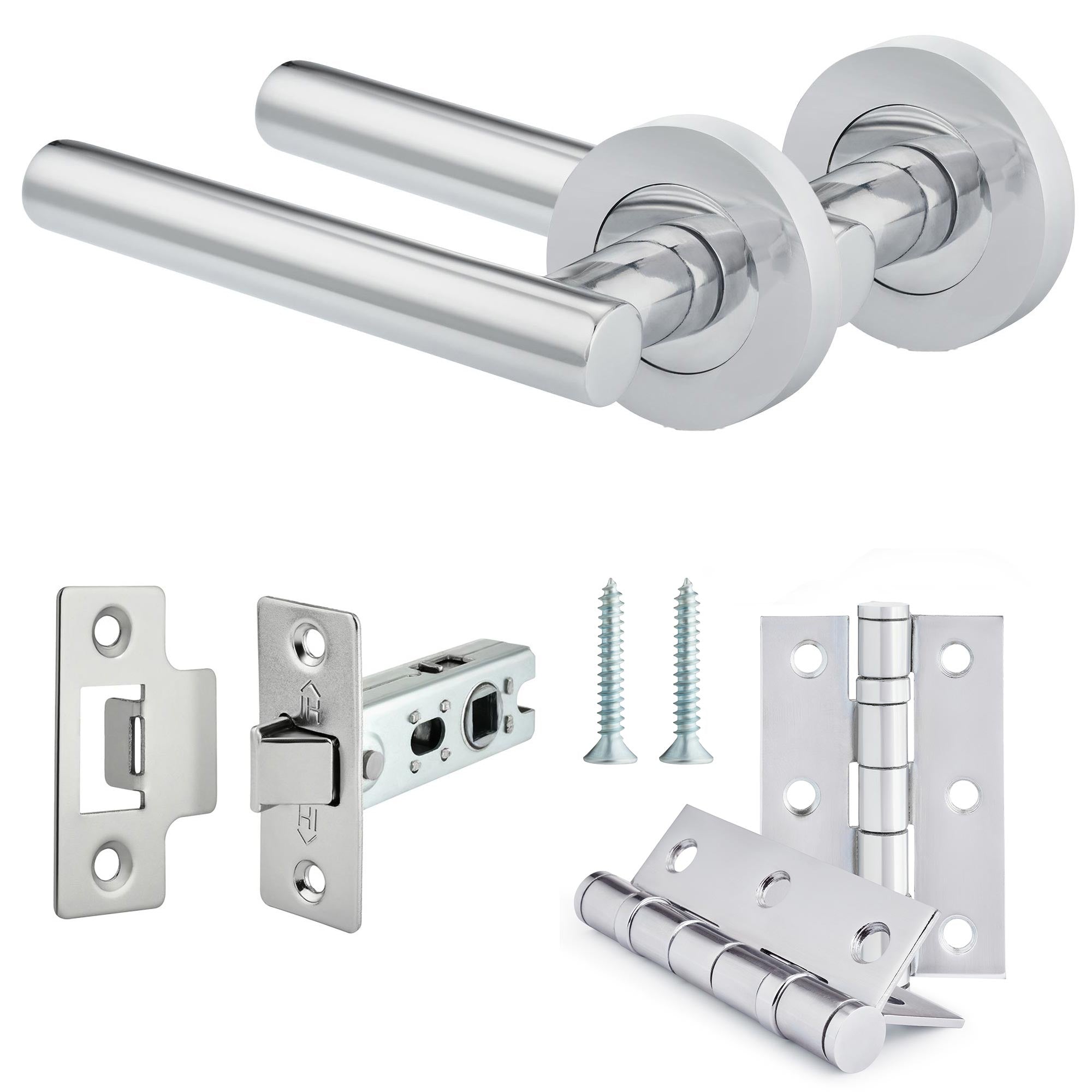

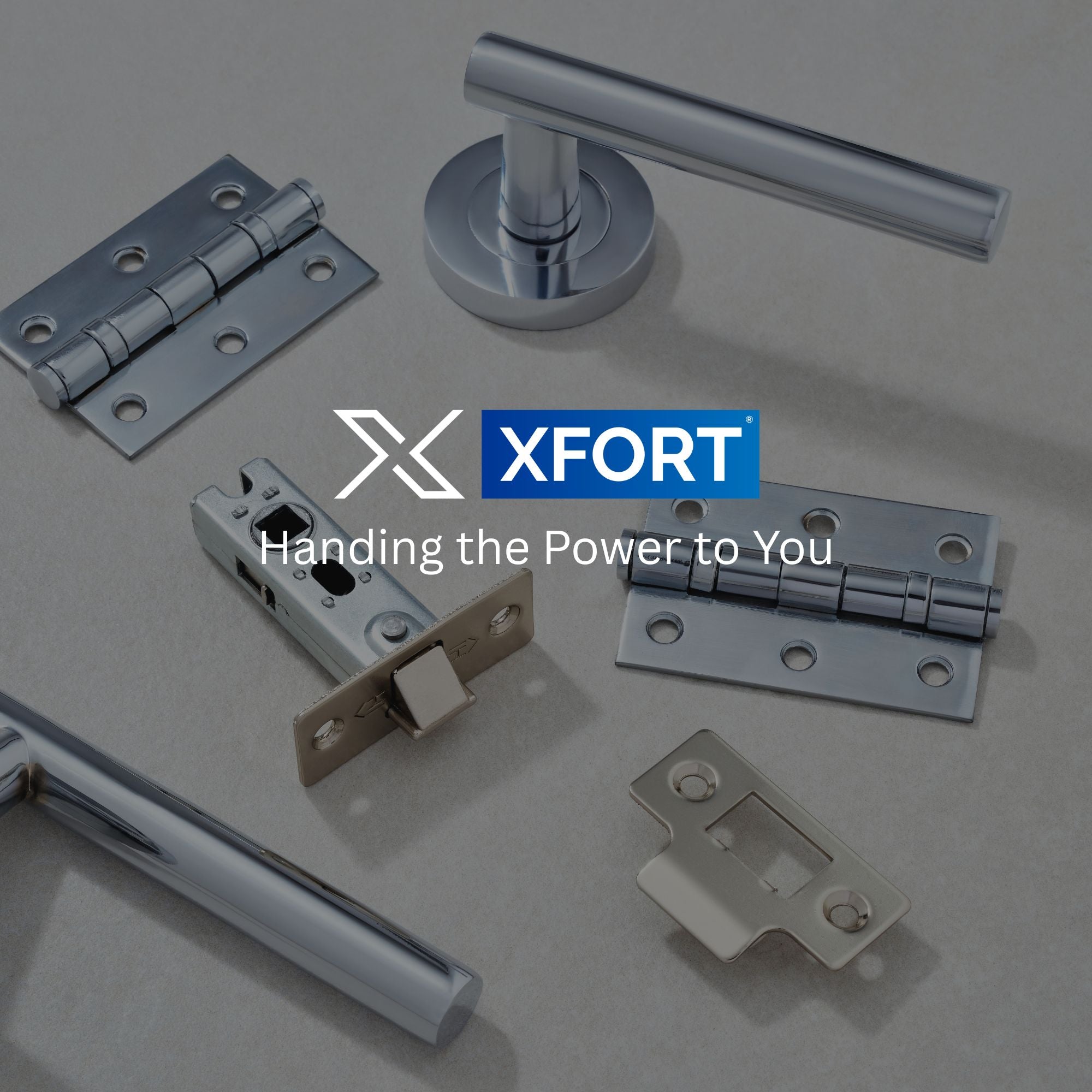

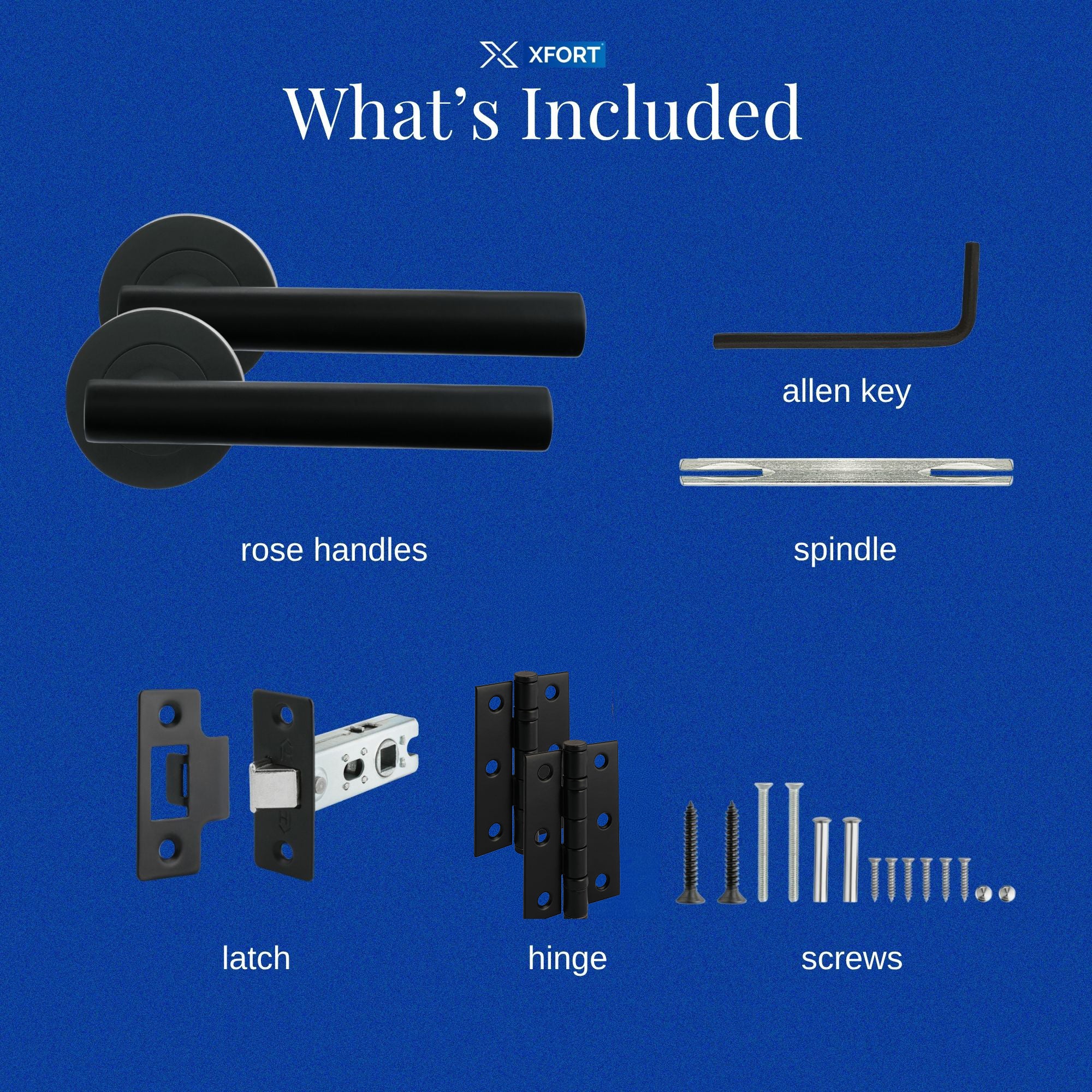

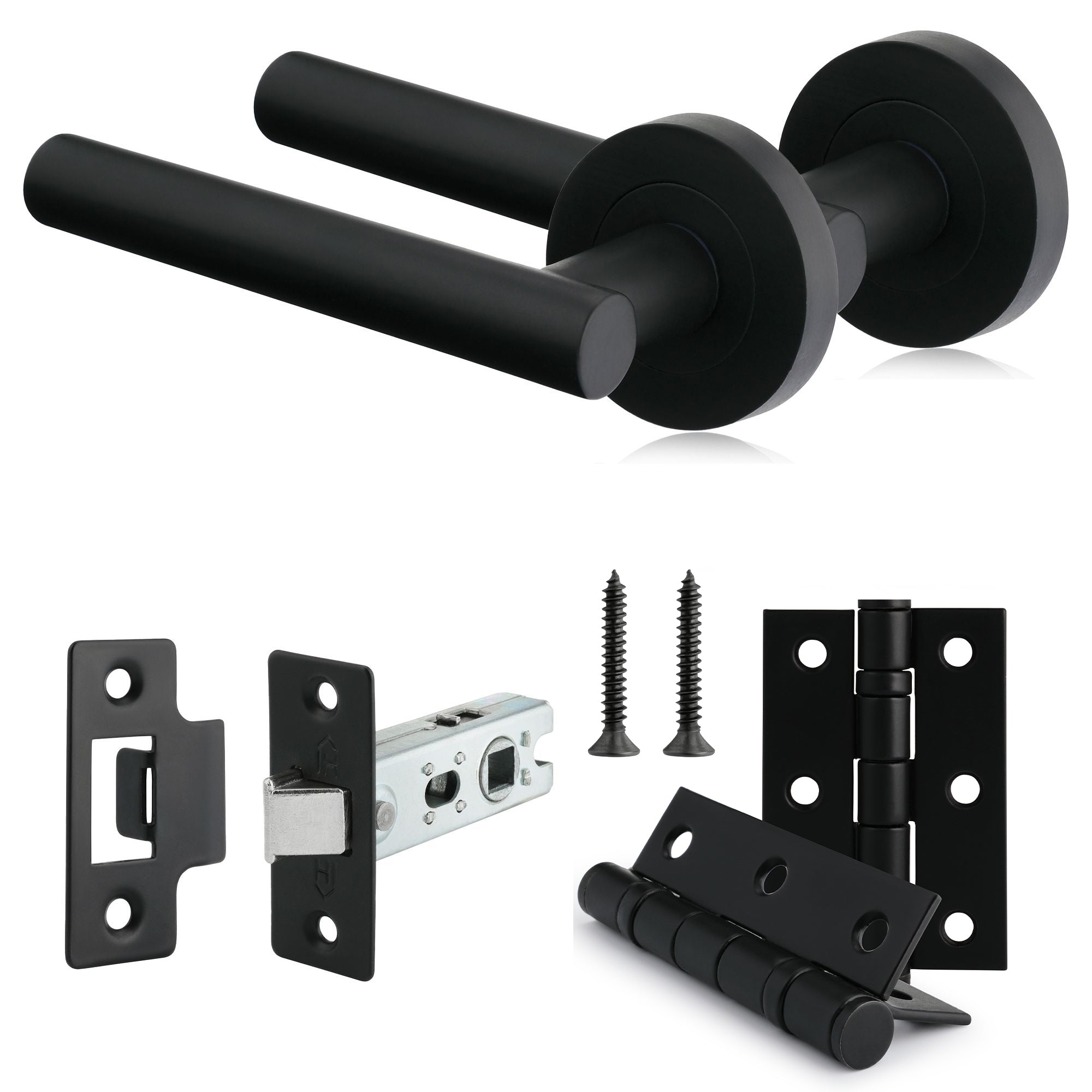

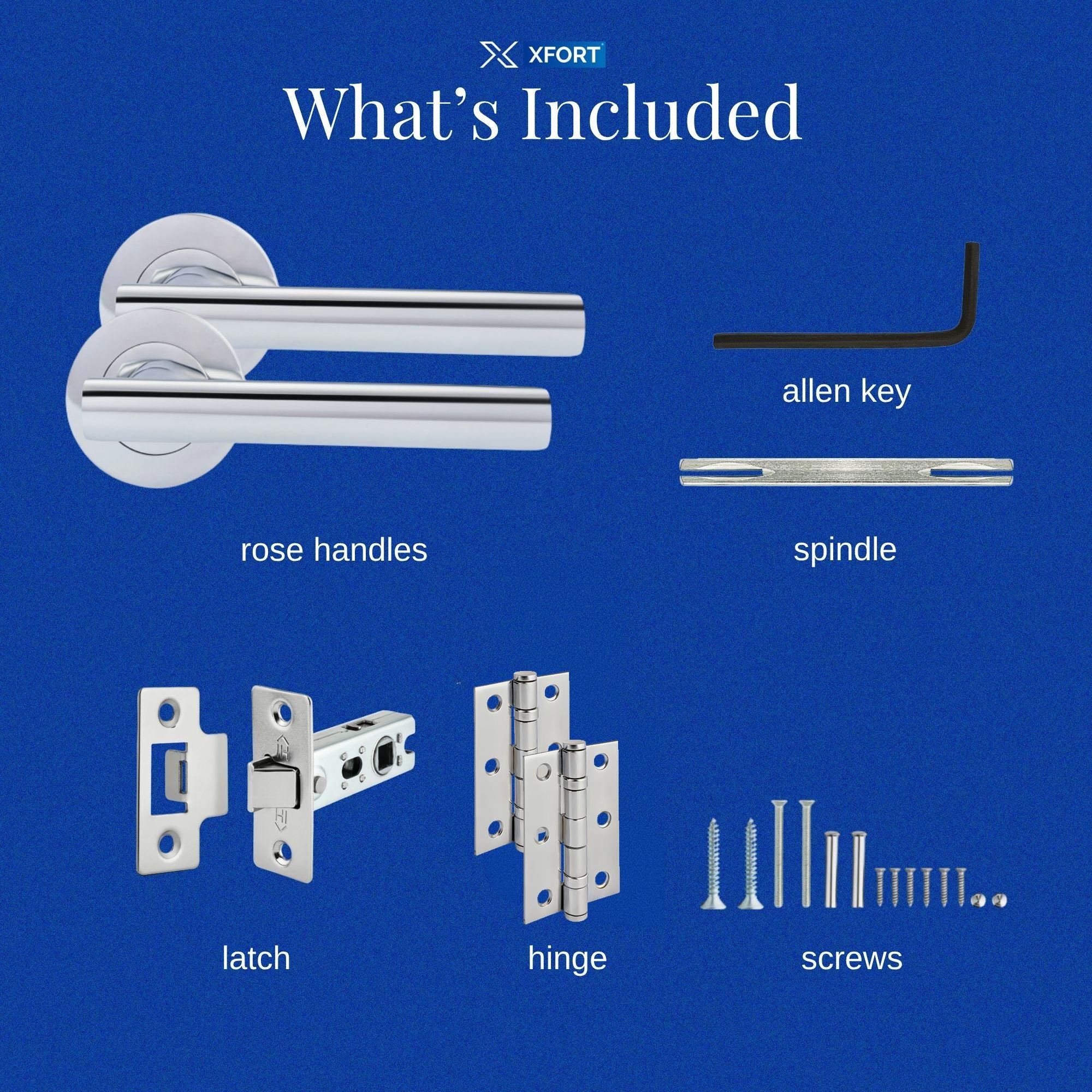

COMPLETE SET: This complete door pack includes Liberty lever on rose door handles, a 65mm tubular latch and a pair of 75mm (3”) ball bearing hinges.
FUNCTION: These handles provide latching for internal doors where no locking is required. They are used with the supplied tubular door latch to allow opening and closing of the doors.
COMPOSITION: The handles are constructed from aluminium on a zinc rose to ensure strength and durability.
APPLICATIONS: They are suitable for all types of indoor wooden doors.
FITTINGS: Supplied with all necessary fixtures and fittings, including colour matched screws and spindle which can be cut down to size required. Please ensure this item is fitted by a locksmith or someone suitably trained.
Delivery Options
2-3 days free and untracked
Next day delivery, tracked £3.60
Free tracked next day deliver on items over £25-30
Product Features
- Compatible with left and right hung doors
- Applicable for internal wooden doors
- Lever sprung door handles
How to Install

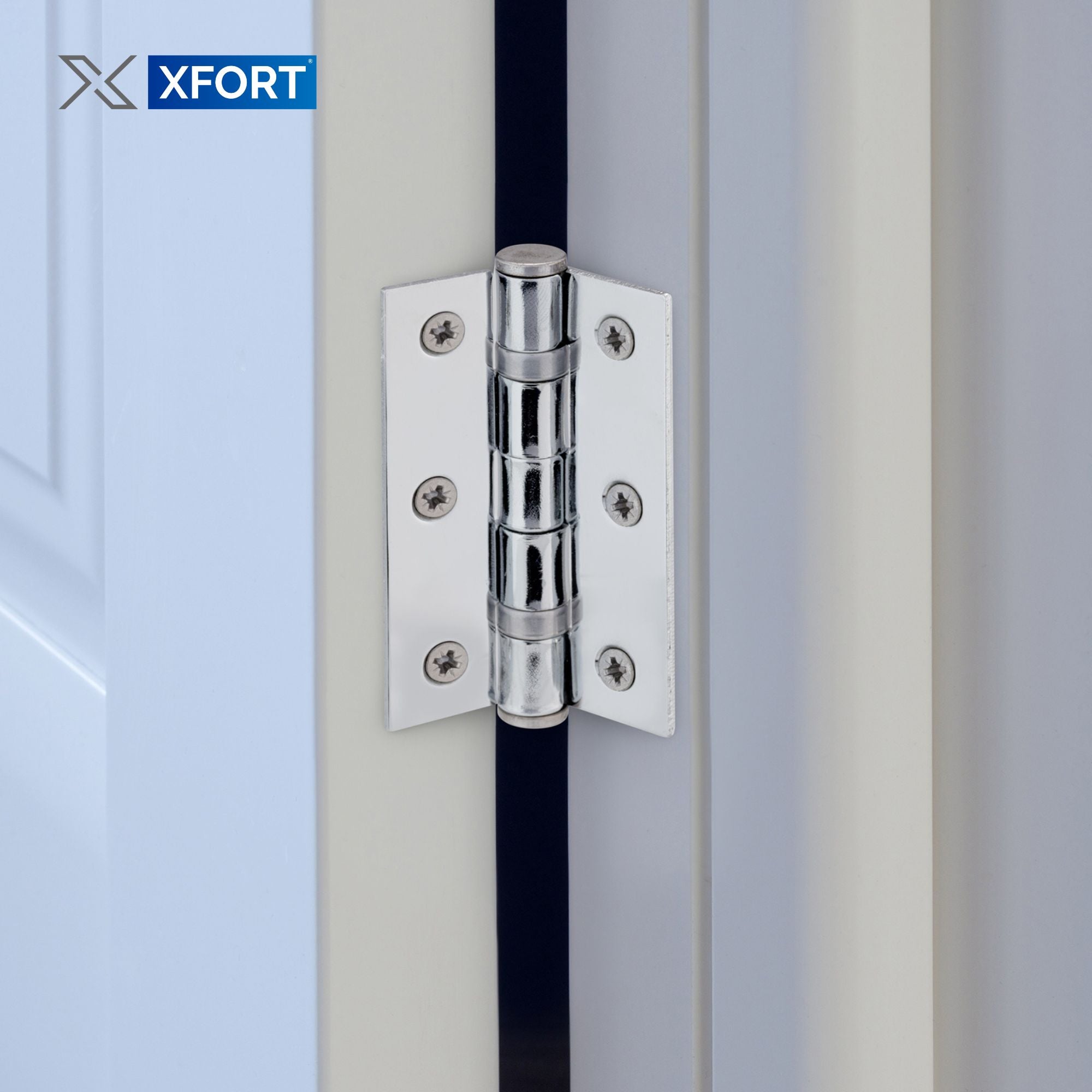

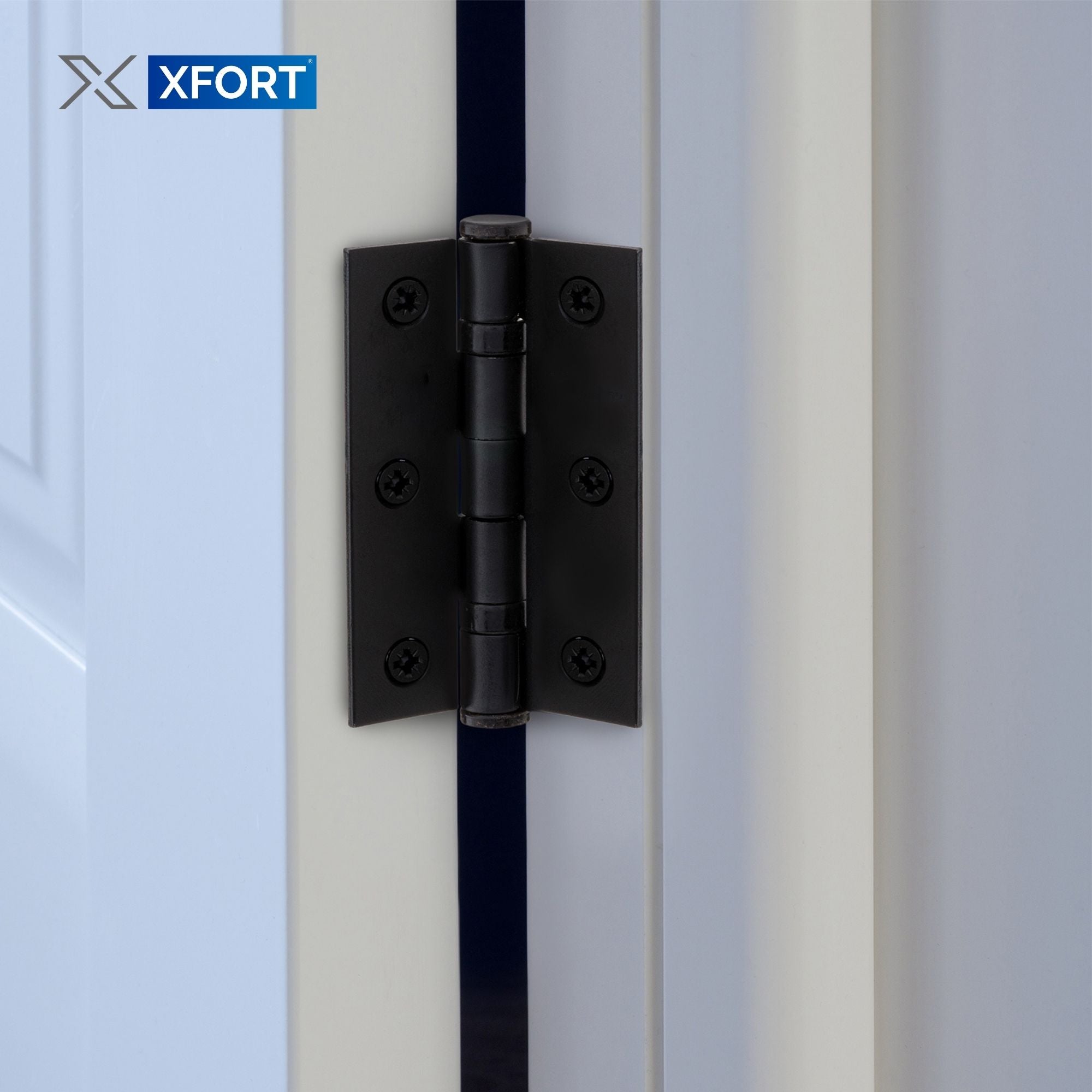

Hang Door with the new BB Hinges
Determine hinge placement and mark with a pencil. Align the hinges screw holes with the frame and door and then fasten the screws to secure the door.
Remove the Old Door Handle and Tubular Latch:
Unscrew and remove the existing door handle and tubular latch from the door. Ensure the door is clean and free of any debris from the old handle and latch.
Install the Tubular Latch
Insert the new tubular latch into the pre-cut mortice in the edge of the door, ensuring the latch aligns with the strike plate on the door frame.
Secure the Tubular Latch:
Attach the faceplate of the tubular latch to the edge of the door using the provided screws.
Insert Spindle:
Slide the spindle (the square connecting rod) through the door hole.
Attach Rose Handles:
Position the rose handles on each side of the door, aligning them with the existing screw holes (if available) and spindle. If the current screw holes do not align with the handles then fill the previous screw holes and then mark and drill new holes accordingly.
Secure the Handles:
Insert and tighten the screws to secure the handles in place.
Secure Rose Covers:
Fit the rose covers over the handles on each side. These covers hide the fittings.
Test the Door Handle:
Operate the door handle and latch to check if they open and close smoothly
Final Adjustments:
Make any necessary adjustments to ensure proper functioning.
Secure the Strike Plate (if necessary):
If the strike plate needs to be adjusted or replaced, do so to ensure that the door latches and locks securely.
