XFORT Bello Passage Knob Set, Door Knob for Internal Wooden Doors
Function: The Bello Passage Knob Set offers a simple solution for non-locking doors. The turn function operates the latch easily, with an ergonomic design for comfortable gripping.
Composition: Crafted from durable stainless steel, this knob set ensures reliability and durability. It provides strength and resilience for long-term performance on internal wooden doors.
Applications: Suitable for internal wooden doors (35-50mm thick), it's perfect for non-locking doors in passageways, kitchens, and living rooms, offering convenience and ease of use.
Fittings: The Passage Knob Set includes all necessary fixtures and fittings for easy installation, such as color-matched screws and a tubular latch
Delivery Options
2-3 days free and untracked
Next day delivery, tracked £3.60
Free tracked next day deliver on items over £25-30
Product Features
1. Simple operation where only latching is required
2. Straight forward installation, ideal for new doors or as replacements
3. Complete set with matching tubular latch, no need for other components
How to Install
Instructions:
1. Remove Old Hardware:
a. Remove the Old Knobs: Unscrew and remove the existing door knobs from both sides of the door.
b. Remove the Old Latch: Unscrew and remove the existing latch mechanism from the door edge.
c. Remove the Strike Plate: Unscrew and remove the old strike plate from the door frame.
2. Prepare the Door:

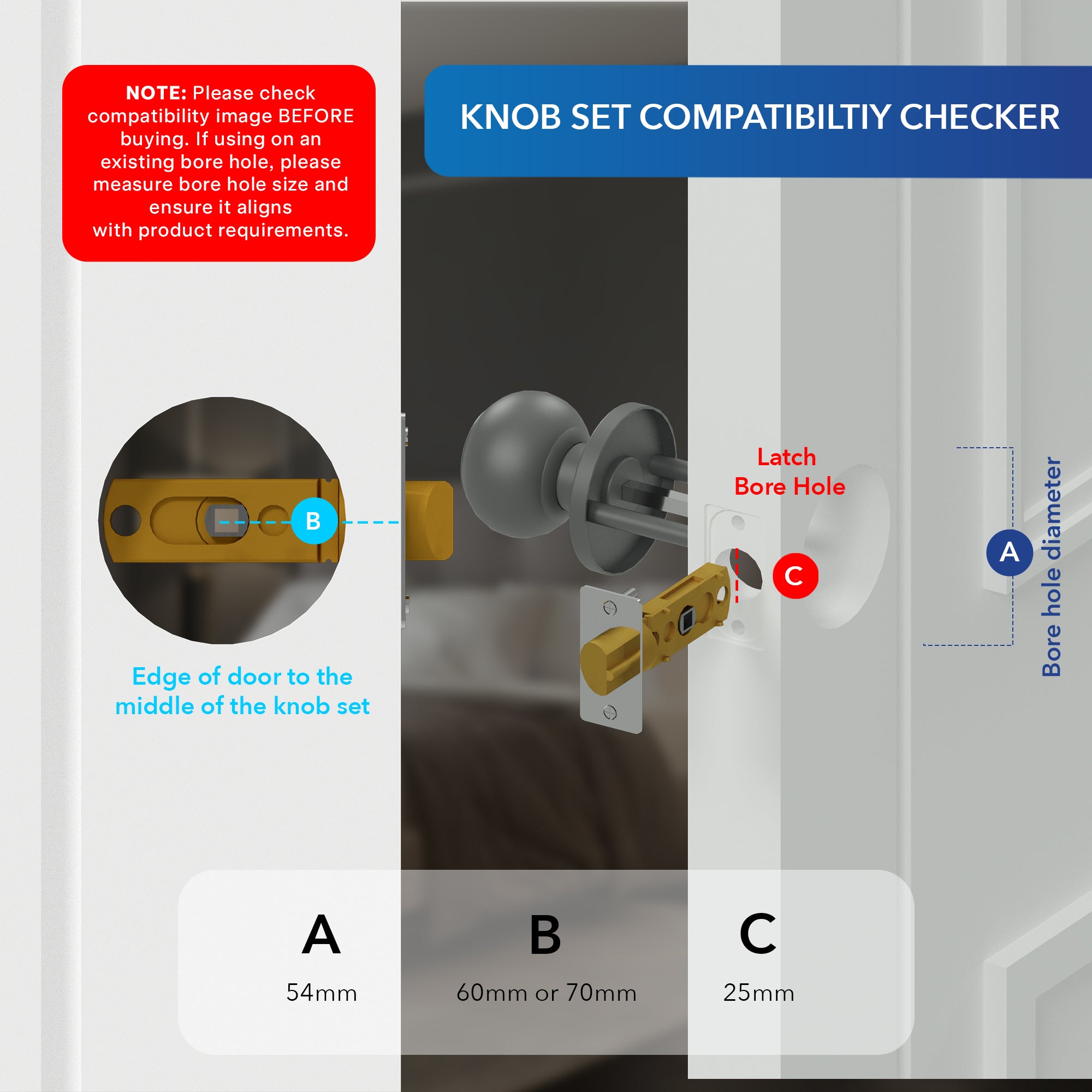

a. Inspect the Existing Holes: Check if the existing holes for the knob spindle and latch are compatible with the new tubular latch and knobs.
b. Adjust Holes if Necessary: If the holes are not the correct size, use a drill to adjust them accordingly. Ensure the hole on the door edge fits the new tubular latch.
3. Install the Tubular Latch:
a. Insert the Latch: Slide the new tubular latch into the hole on the door edge.
b. Secure the Latch: Align the latch faceplate with the door edge and secure it with the provided screws. If necessary, use a chisel to adjust the recess so the faceplate sits flush.
4. Install the Door Knobs:
a. Insert the Spindle: Insert the spindle through the tubular latch, ensuring it passes through the latch mechanism.
b. Attach the Knobs: Align the new door knobs on either side of the door, ensuring the spindle fits into the back of each knob.
c. Secure the Knobs: Attach the knobs to the door with the provided screws, ensuring they are tightened securely and the knobs turn smoothly.
5. Install the Strike Plate:
a. Mark the Strike Plate Position: Close the door and mark the position where the latch bolt meets the door frame.
b. Chisel the Recess: If the existing recess for the strike plate is not suitable, use a chisel to adjust it so the new strike plate sits flush with the frame.
c. Secure the Strike Plate: Align the strike plate with the recess and secure it with the provided screws.
6. Final Checks:
a. Test the Knobs and Latch: Open and close the door to ensure the knobs and latch operate smoothly.
b. Make Adjustments: If necessary, adjust the positioning of the latch or knobs to ensure proper alignment and functionality.
Congratulations! You have successfully retrofitted your mortice door knob set with a tubular latch. If you encounter any difficulties or have further questions, consult a professional or a DIY expert for assistance. Always prioritize safety while working with tools and hardware"
